High-Performance 35W 24V SMPS Switching Power Supply transformer for Industries

Short Description:

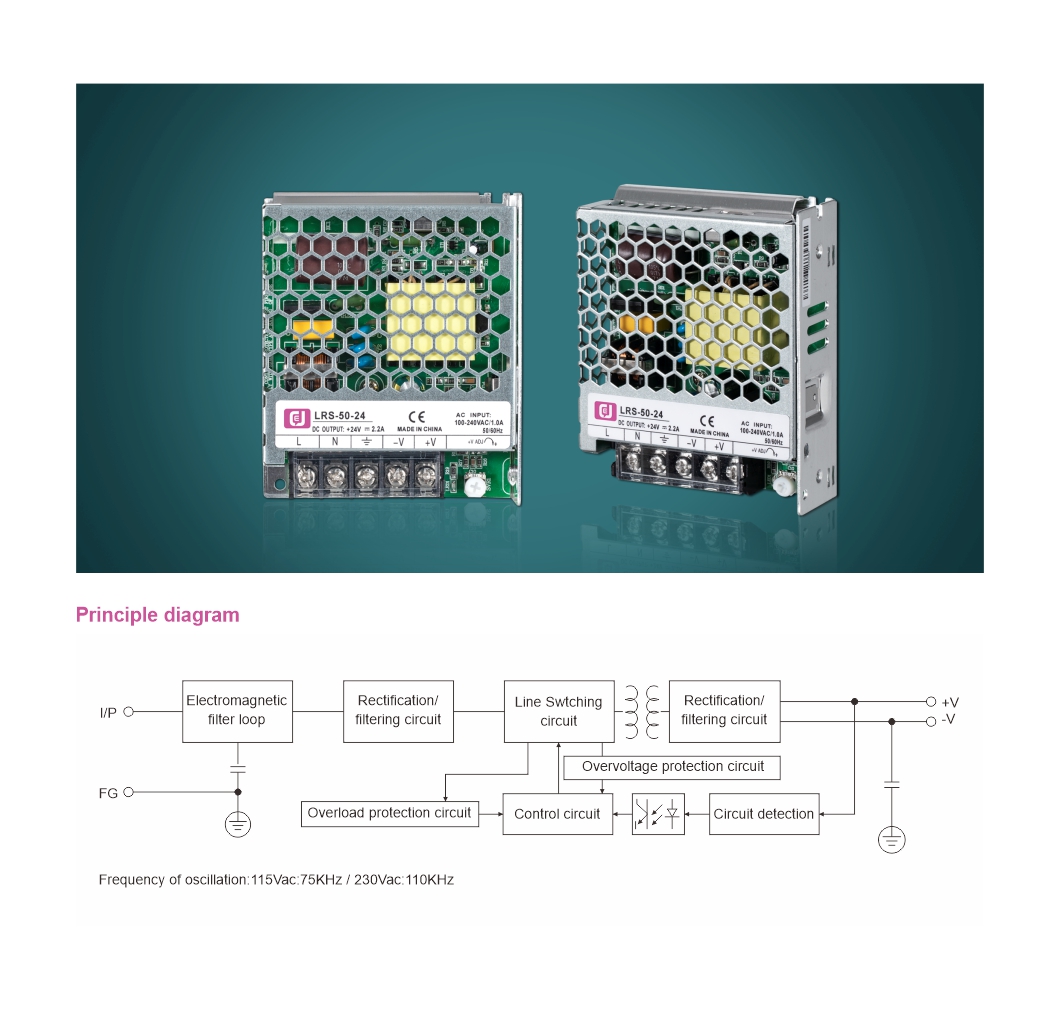

The LRS-35/50 series is a 35W/50W single-output enclosed power supply featuring a 30mm low-profile design and 85-264VAC wide-range AC input. The entire series provides outputs of 5V, 12V, 15V, 24V, 36V, and 48V. With an efficiency of up to 91.5%, its metal mesh enclosure enhances heat dissipation, allowing the LRS-35/50 to operate over a temperature range of -30°C to +70°C without a fan. Ultra-low no-load power consumption (below 0.3W) helps end systems easily comply with international energy efficiency requirements. The LRS-35/50 series offers full protection and 5G vibration resistance, and complies with international safety regulations including EN 60950-1, EN 60335-1, EN 61558-1/-2-16, and GB 4943. It provides a cost-effective solution for a wide range of industrial applications.

Send email to us

Product Detail

Product Tags

Technical Data

Type		Technical indicators
Output	DC voltage	5V	12V	24V	36V	48V
	Rated current	7A	3A	1.5A	1A	0.8A
	Rated power	35W	36W	36W	36W	38.4W
	Ripple and noise	80mVp-p	120mVp-p	150mVp-p	200mVp-p	200mVp-p
	Voltage regulation range	±10%
	Voltage precision	±2.0%	±1.0%	±1.0%	±1.0%	±1.0%
	Linear adjustment rate	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%
	Load regulation rate	±1.0%	±0.5%	±0.5%	±0.5%	±0.5%
	Star up time	1000ms,30ms/230VAC 2000ms,30ms/115VAC(full load)
	Keep time	30ms/230VAC 12ms/115VA(full load)
Input	Voltage range/frequency	85-264VAC/120-373VDC 47Hz-63Hz
	Efficiency(typcial)	82%	86%	88%	88%	89%
	Working current	0.7A/115VAC 0.42A/230VAC
	Shock current	Cold start:45A/230VAC
	Leakage current	<0.75mA 240VAC
Protection characteristics	Overload protection	Protection type: burp mode, remove the abnormal situation and automatically return to normal
Protection characteristics	Overvoltage protection	Protection type:close output and restart automatically to normal
Environmental science	Working temperature and humidity	-30ºC~+70ºC;20%~90RH
Environmental science	Storage temperature and humidity	-40ºC~+85ºC;10%~95RH
Security	Pressure resistance	Input – output :4KVAC input-case :2KVAC output -case: 1.25kvac duration :1 minute
Security	lnsulation impedance	Input – output and input – shell, output – shell: 500 VDC /100mΩ 25ºC,70% RH
Other	Size	988230mm
Other	Net weight / gross weight	230g/246g
Remarks	(1)Measurement of ripple and noise: Using a 12 “twisted-pair line with a capacitor of 0.1uF and 47uF in parallel at the terminal,the measurement is carried out at 20MHz bandwidth.
Remarks	(2)Efficiency is tested at the input voltage of 230VAC,rated load and 25ºC ambient temperature.Accuracy: including setting error,linear adjustment rate and load adjustmient rate.Test method of linear adjustment rate: testing from low voltage to high voltage at rated loadLoad adjustment rate test method: from 0%-100% rated load.The start-up time is measured in the cold start state, and the fast frequent switch machine may increase the startup time.When the altitude is above 2000 meters, the operating temperature should be lowered by 5/1000.
