Short Description:

The HDR-15,30,60,100 series are 15,30,60,100W adjustable AC-DC ultra-thin DIN rail switching power supplies, using 85-264VAC full range AC input series, providing 5V, 12V, 15V, 24V and 48V outputs.

In addition to the efficiency of up to 90%, the front and rear ventilation design of the housing allows the HDR series switches to operate in a temperature range of -20°C to +85°C without a fan.

The HDR series has complete protection functions and anti-interference capabilities; it complies with EN 60950-1, EN 60335-1, EN 61558-1/-2-16 GB4943 international safety regulations; the HDR series provides a cost-effective solution for various industrial applications.

Send email to us

Product Detail

Product Tags

Feature

Ultra slim design with 35mm(2SU) width
Universal input 85~264VAC(277VAC operational).
No load power consumption<0.3W
Isolation class II
Pass LPS (Limited power source)
DC output voltage adjustable
Protections : Short circuit /Overload /Over voltage
Cooling by free air convection (working temperature:-30~+70°C)
DIN rail TS-35/7.5 or 15 mountable
LED indicator for power on

Technical Data

Model		HDR-15-5	HDR-15-12	HDR-15-15	HDR-15-24
Output	DC voltage	5V	12V	15V	24V
	Rated current	2.4A	1.25A	1A	0.63A
	Current range	0~2.4A	0~1.25A	0~1A	0~0.63A
	Rated power	12W	15W	15W	15.2W
	Ripple and noise (maximum) Note 2	80mVp-p	120mVp-p	120mVp-p	150mVp-p
	Voltage adjustment range	4.75~5.5V	10.8~13.2V	13.5~16.5V	21.6~26.4V
	Voltage accuracy Note 3	±2.0%	±1.0%	±1.0%	±1.0%
	Linear regulation rate	±1.0%	±1.0%	±1.0%	±1.0%
	Load regulation rate	±1.0%	±1.0%	±1.0%	±1.0%
	Start-up, rise time	2000ms,80ms/230VAC;2000ms,80ms/115VAC(When fully loaded)
	Hold time (Typ)	30ms/230VAC;12ms/115VAC(When fully loaded)
Input	Voltage range	85~264VAC;120 ~370VDC
	Frequency range	47~63Hz
	Efficiency (Typ)	80%	85%	85.5%	86%
	AC current (Typ)	0.5A/115VAC;0.25A/230VAC
	Surge current (Typ)	Cold Start: 25A/115VAC;45A/230VAC
Protection	Overload	110~145% of rated output power
		Hiccup mode, automatic recovery after abnormal load condition is removed
	Overvoltage	5.75~6.75V	14.2~16.2V	18.8~22.5V	30~36V
		Protection mode: shut down the output, clamped by Zener diode
Environment	Working temperature	-10～~+50℃(Please refer to “Derating Curve”)
	Working humidity	20~90%RH,No condensation
	Storage temperature and humidity	-20~+85℃,10~95% RH
	Temperature coefficient	±0.03%7℃ (0～50℃)
	Vibration resistance	10~500Hz, 2G10 minutes/cycle, 60 minutes for each of X, Y and Z axes; Installation: Comply with IEC60068-2-6
Safety and EMC (Note 4)	Safety regulations	GB 4943.1-2011
	Withstand voltage	IP-O/P:2.0KVAC
	Insulation resistance	IP-O/P:100M Ohms / 500VDC/25℃/70% RH
	EMC emission	Comply with GB 17625.1-2012
	EMC immunity	Comply with GB/T 9254-2008;Class A heavy industry standard
Others	MTBF	≥364.6K hrs .MIL-HDBK-217F(25℃)

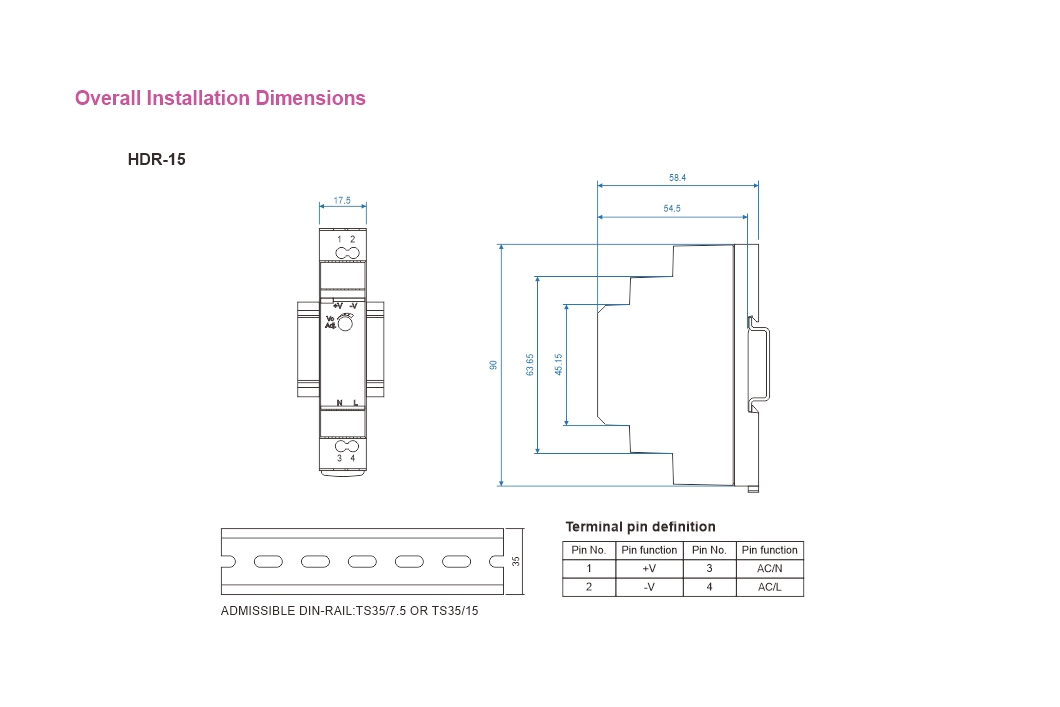

	Size	17.59054.5MM（WHD）
	Packaging	0.07Kg; 100pcs/7Kg
Notes	1. Unless otherwise specified, all specifications are measured at 230VAC input, rated load, and 25℃ ambient temperature. 2. Ripple and noise measurement method: Use a 12″ twisted pair cable, and connect 0.1uf and 47uf capacitors in parallel at the terminal, and measure at 2OMHZ bandwidth. 3. Accuracy: Includes setting error, line regulation rate, and load regulation rate. 4. The power supply is considered as a component within the system and needs to be confirmed for electromagnetic compatibility in conjunction with the terminal equipment.
