Best price ATMS1603 Zigbee/4G Remote Control Wifi Smart Energy Meter Timer with Current transformer

Short Description:

Product Detail

Product Tags

Function

1.In the App can display:
Today Ele (KWh),
Current Ele (mA),
Current Power(W),
Current Voltage (V),
Total Ele (Kwh)

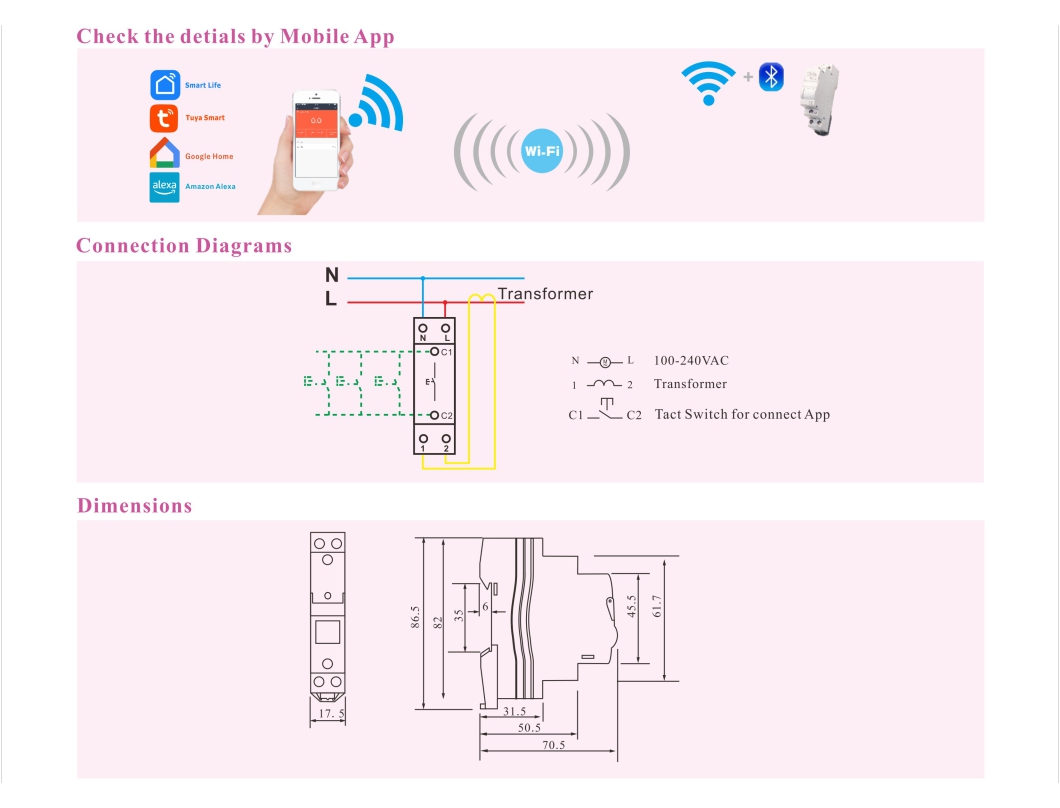

2.Also can be connected to WiFi by buttons from terminal Cl and C2.
3.Can be share with 20 users by Mobile App.
4.The Current Transformer can open.

Technical Data

Model	ATMS1603
Nominal voltage (UN)	100-240V AC(50/60Hz)
Operating range AC(50 Hz)	(0.8…1.1)UN
Rated power	2.2VA/0.7W
Current range	0.02A~63A
WiFi Frequency	2.4GHz
Ambient temperature range	-20°C~+60°C
Mounting	DIN Rail 35 mm(EN 60715)
